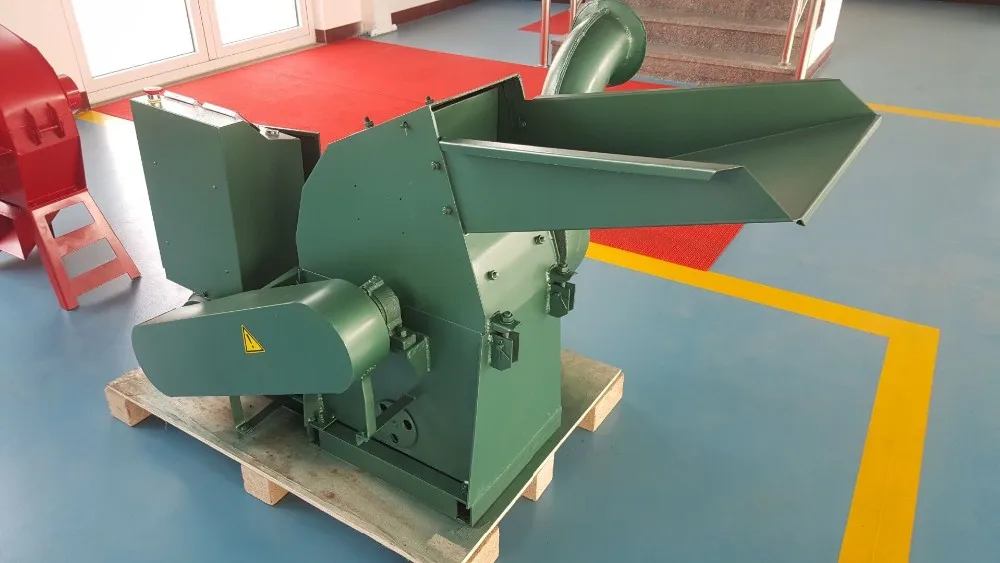

Hammer mill is new- style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alfalfa, peanuts shell and foodstuffs etc.

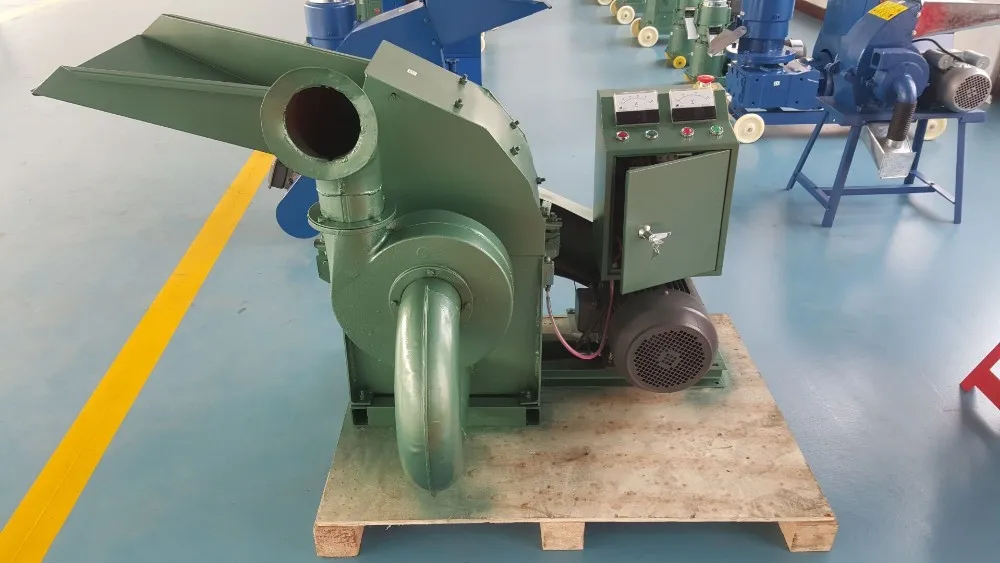

2. CF420C hammer mill is driven by 11kw, 380V, 50Hz electrical motor.
3. The capacity of CF420C is 200-500kg/h, it is suitable for home use.
4. It has simple construction, convenient operation, high efficiency and low power consumption.
5. CF420 can also be driven by 15hp diesel or 22hp diesel engine, we called it CF420A.

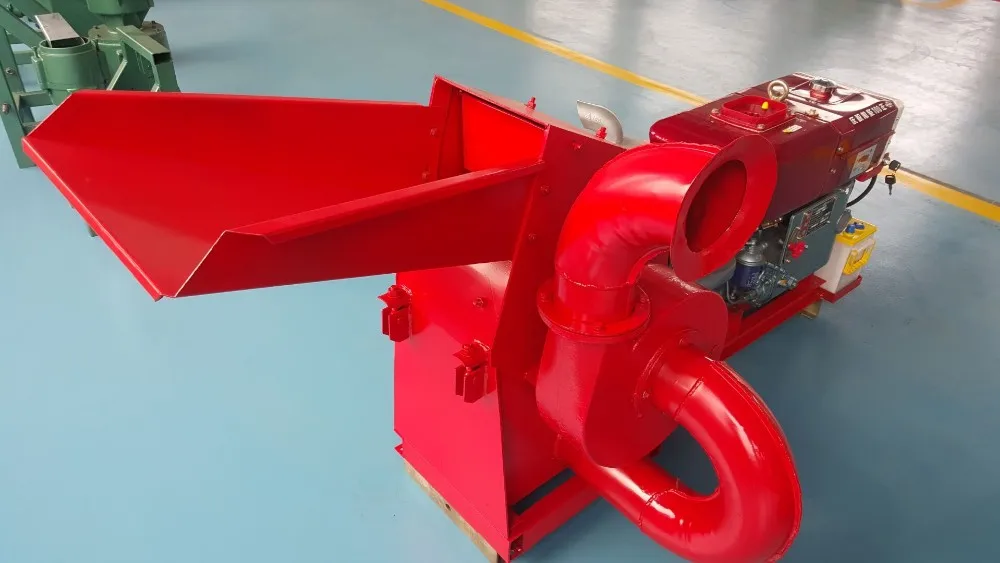

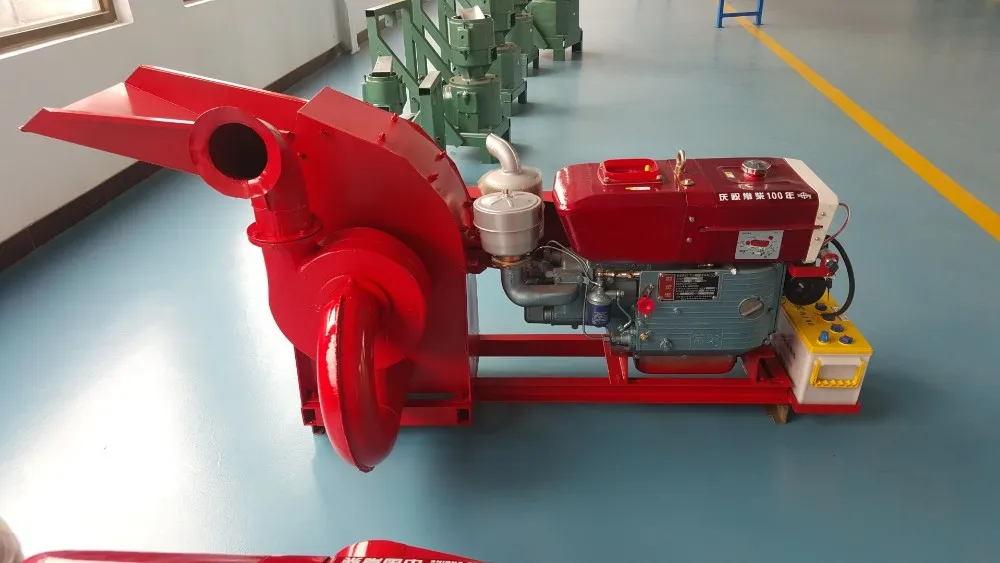

Diesel engine Driven CF420A Wood Hammer Mill
The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.

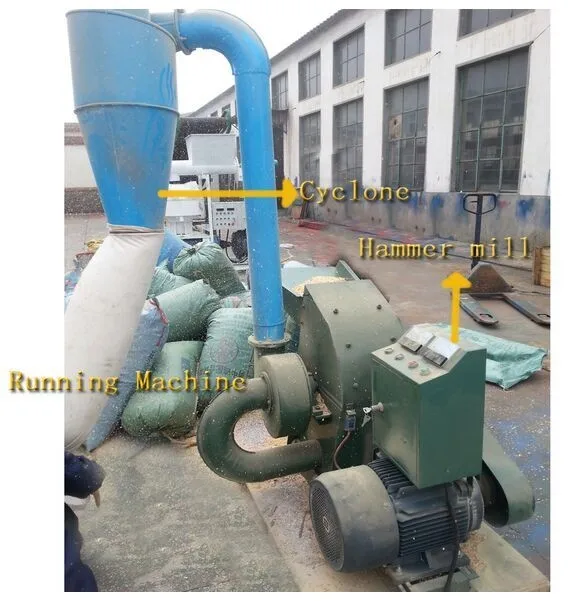

After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.

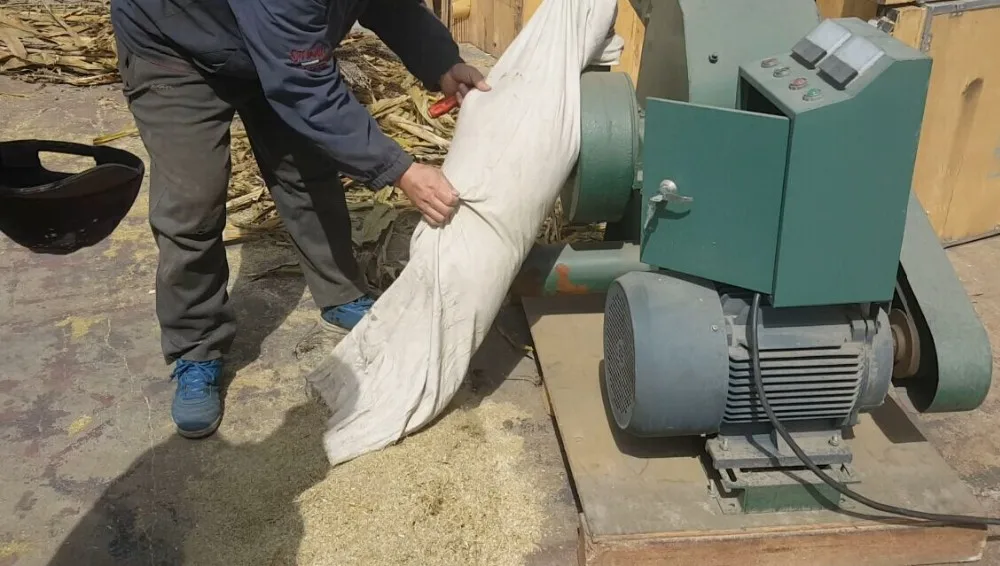

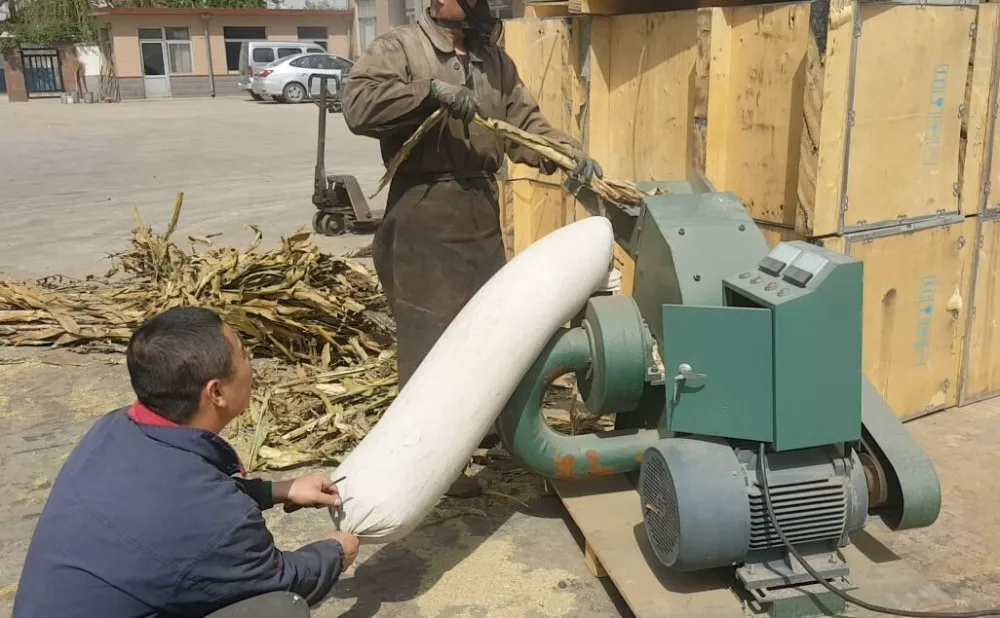

CF420C Hammer Mill Testing on 22 April, 2016
Technical Parameters of Wood Hammer Mills
Sieve Screen Size
Sieve Screen Size
Main Features of Wood Hammer Mills
1. With capacity 60-120kg/h, this hammer mill can satisfy a large production demand on a daily basis. 2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill. 3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen. 4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part. 5. The angle of the screen can be 180° which allows for high throughput at lower power consumption. 6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing

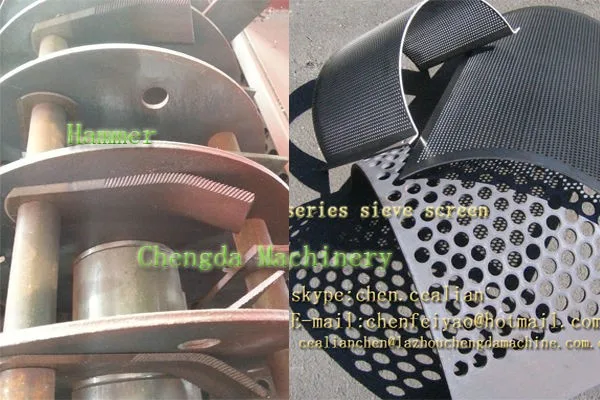

Hammer Mill Parts

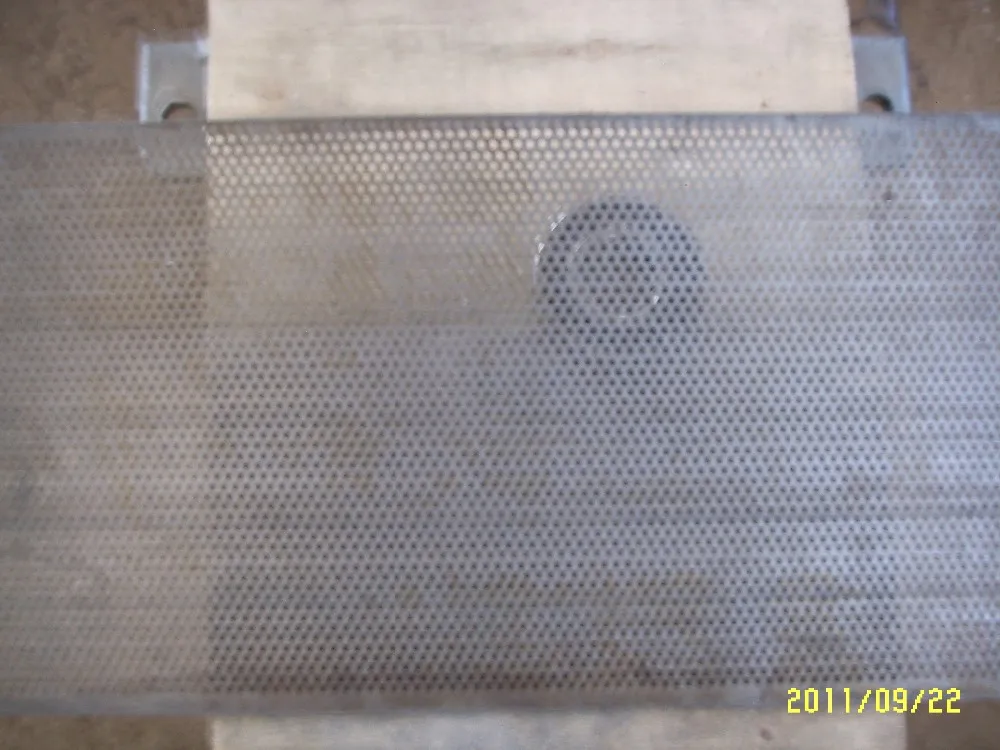

Machine Parts Name: Sieve Brand: chengda Original: China, Shandong The hole diameter can be 1.5mm, 2mm, 4mm, 6mm, 8mm
Name: Sieve Brand: Chengda Original: China, Shandong The sieve is made by Iron Sheet. When we use it, please avaid metal materials put into hammer mill so that to demage the sieve.

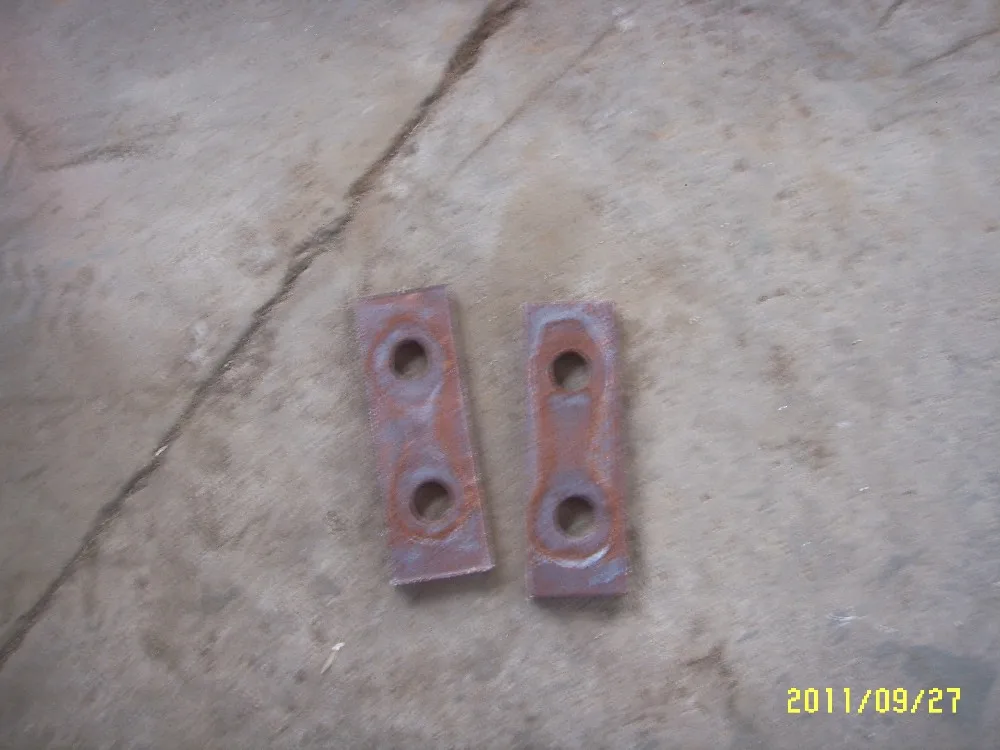

Name: Hammer Sheet Brand: chengda Original: China, Shandong The hammer sheet is made by iron sheet. If we use it in a right way, we can use it more than 1000 hours.

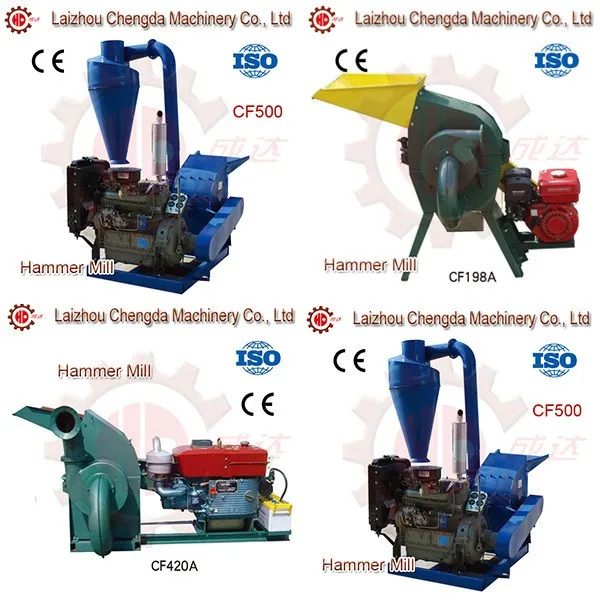

Other Diesel Engine Powered Hammer Mills--- CF500A, CF198A, CF420A

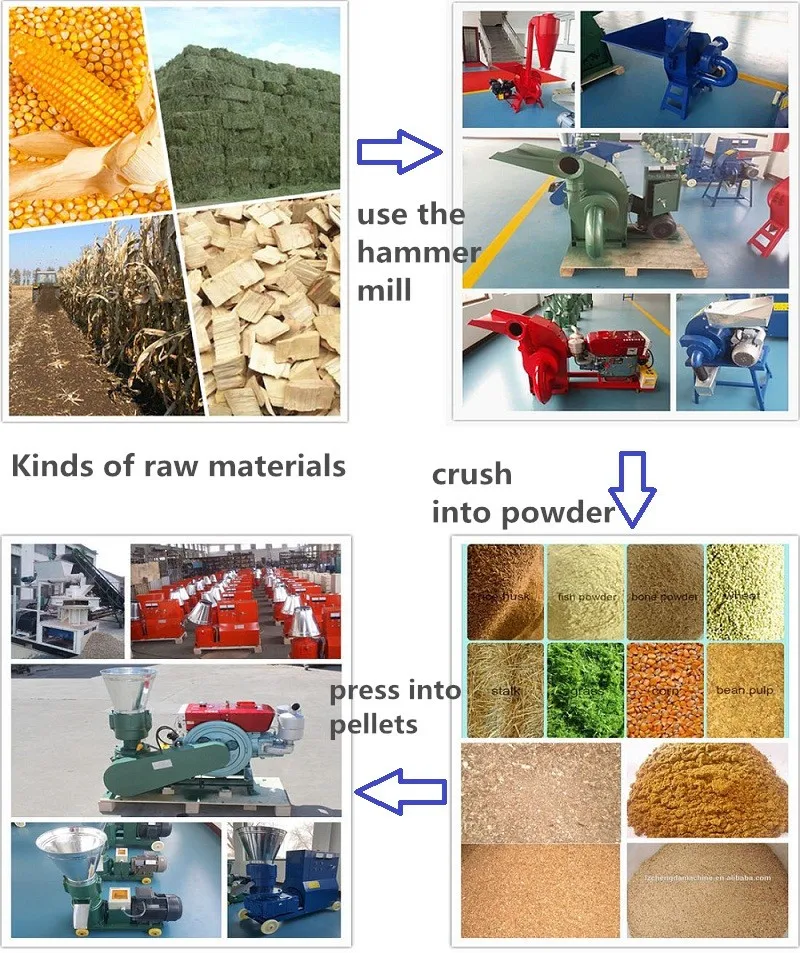

Kinds of Raw Materials

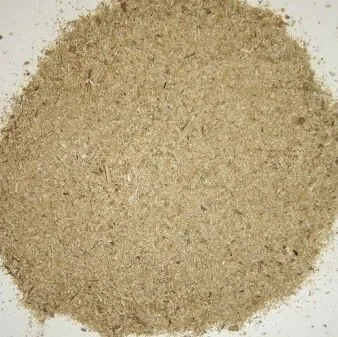

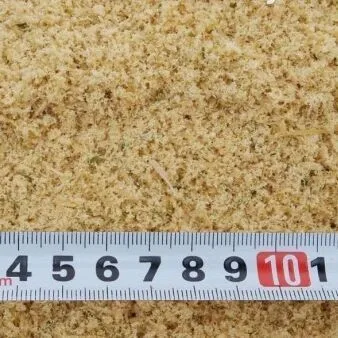

Final Products You Can See
How to choose a good quality wood hammer mill?
Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

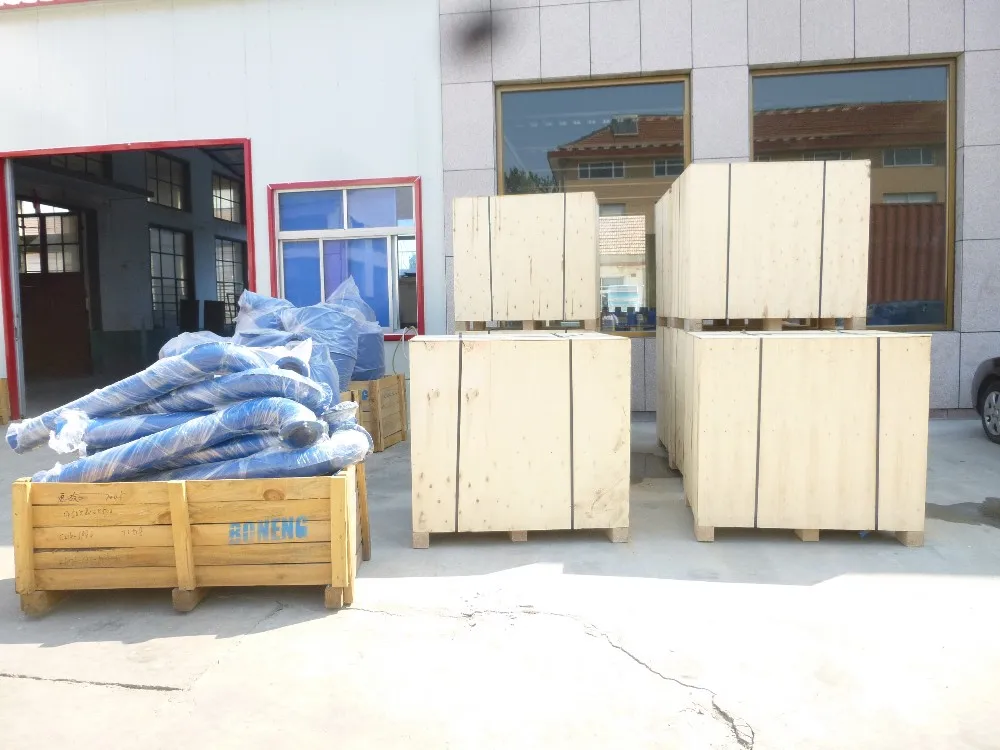

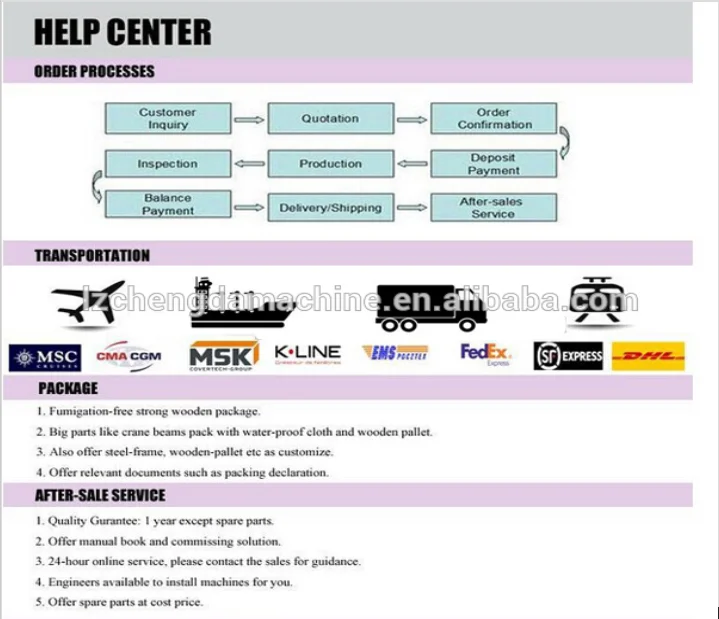

Packing & Delivery
Packing & Delivery
Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you. Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)
Laizhou Chengda Machinery Co., Ltd
Our company was founded in 1992, which is a high tech that enterprise integrates new product design, development, manufecturing and international trade business.Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Please free free to contact us if you have any inquiries and we will try our best to meet your demands.
1. The motor can be used by customers requirements.
Can use Siemens, Yangma, etc brand.
2. The color, the looks can also designed as customers' requirements.
3. All the machines with 1-2 years warranty, safe to use and sell.
1. 1 year guaranteed time with life-time service. 2. Free training, Guidance Installation and Debugging.If needed, engineers can be sent to your factory for installation and commissioning, training. 3. English manual and video for installation & operation. 4. Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours.
* Inquiry and consulting support.
* Sample testing support.

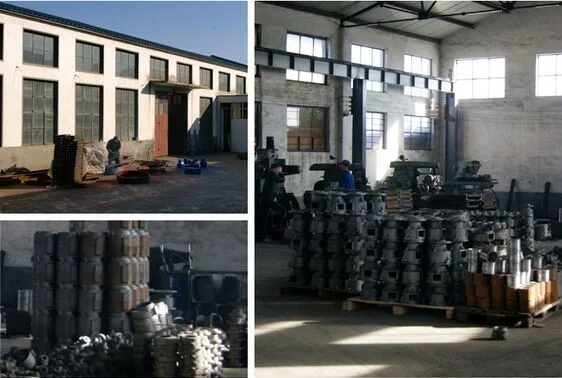

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
