Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: chengda machine
  • Model Number: CF198
  • Voltage: 380V
  • Power(W): 4kw
  • Dimension(L*W*H): 90*58*102cm
  • Weight: 140kg
  • Certification: CE; ISO
  • Warranty: one year
  • After-sales Service Provided: No overseas service provided
  • Color: As request
  • Sieve Screen Size: 510*200mm
  • Sieve Screen Specification: 2-10mm
  • Capacity: 200-300kg/h

Packaging & Delivery

Packaging Details plywood case
Delivery Time Shipped in 10 days after payment
Product Description
Working principle
The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.
After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.

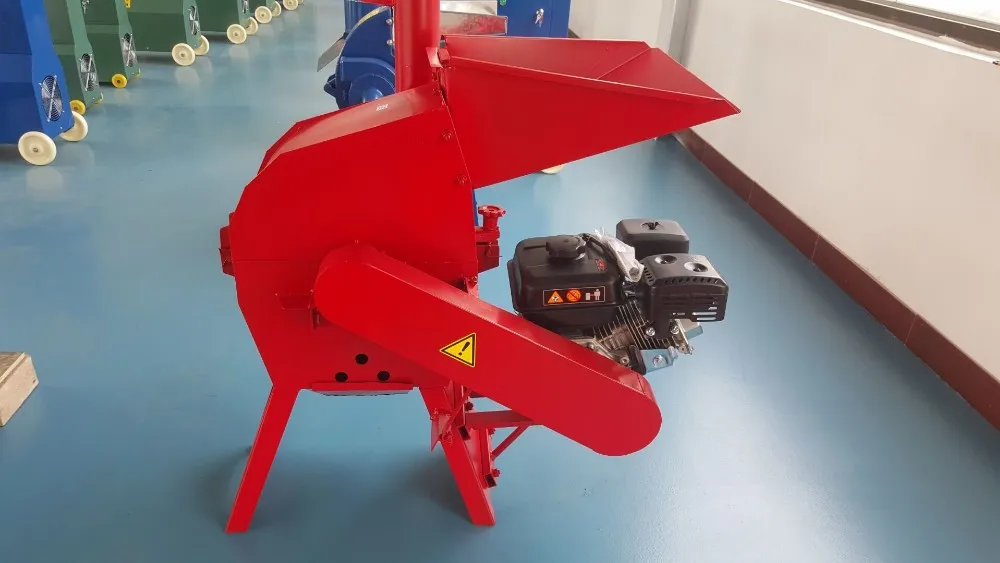

Gasoline Engine Small hammer mill---CF198A

Hammer mill is new- style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alfalfa, peanuts shell and foodstuffs etc.
2. CF198A hammer mill is driven by 7.5HP gasoline engine.
3. The capacity of CF198A  is 200-300kg/h, it is suitable for home use.
4. It has simple construction, convenient operation, high efficiency and low power consumption.
5. CF198A can also be driven by  we called it CF198A.

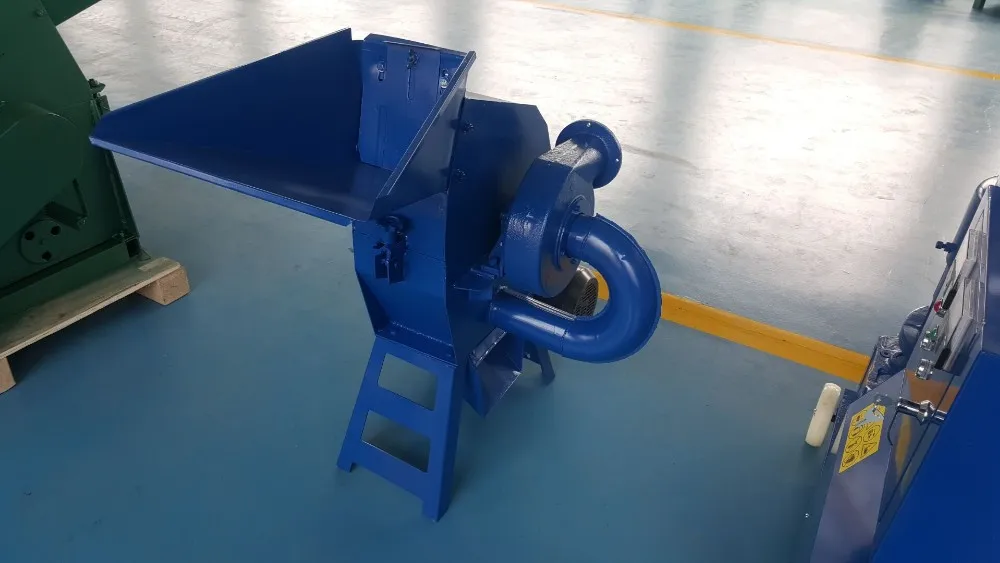

4KW Electrical Motor Powered CF198 Hammer Mill


Technical Parameters of Chengda Hammer Mills

Model
Power
Voltage V/50Hz
Sieve Screen Size
Sieve Screen Size
Capacity
CF158
2.2KW
380V
360*160mm
1.5-10mm
60-120kg/h
CF198
4KW
380V
510*200mm
2-10mm
200-300kg/h
CF198A
7.5HP
380V
510*200mm
2-10mm
200-300kg/h
CF420B
7.5KW
380V
680*280mm
2-10mm
200-500kg/h
CF420C
11KW
380V
680*280mm
2-10mm
200-500kg/h
CF420A
15HP
380V
680*280mm
2-10mm
200-500kg/h
CF420A
22HP
380V
680*280mm
2-10mm
200-500kg/h
CF500
22KW
380V
820*380mm
2-10mm
800-1100kg/h
CF500A
55HP
380V
820*380mm
2-10mm
800-1100kg/h

Main Features of Wood Hammer Mills

1. With capacity 60-120kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing


Hammer Mill Parts

Machine Parts

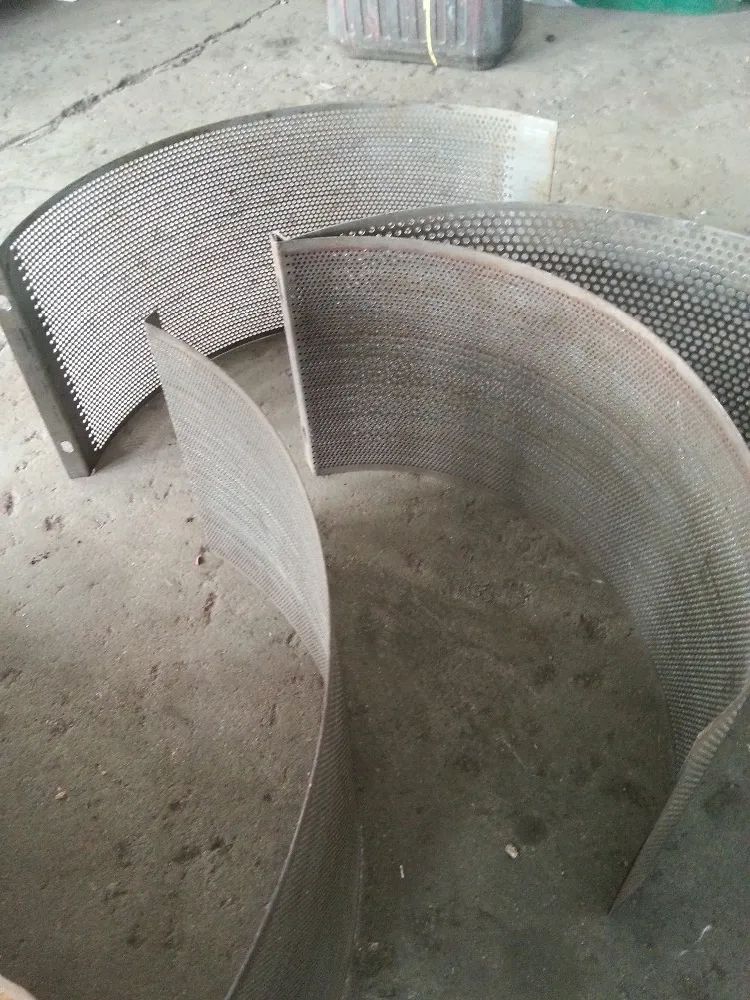

Name: Sieve
Brand: chengda
Original: China, Shandong
The hole diameter can be 1.5mm, 2mm, 4mm, 6mm, 8mm


Machine Parts

Name: Sieve
Brand: Chengda
Original: China, Shandong
The sieve is made by Iron Sheet. When we use it, please avaid metal materials put into hammer mill so that to demage the sieve.

Machine Parts

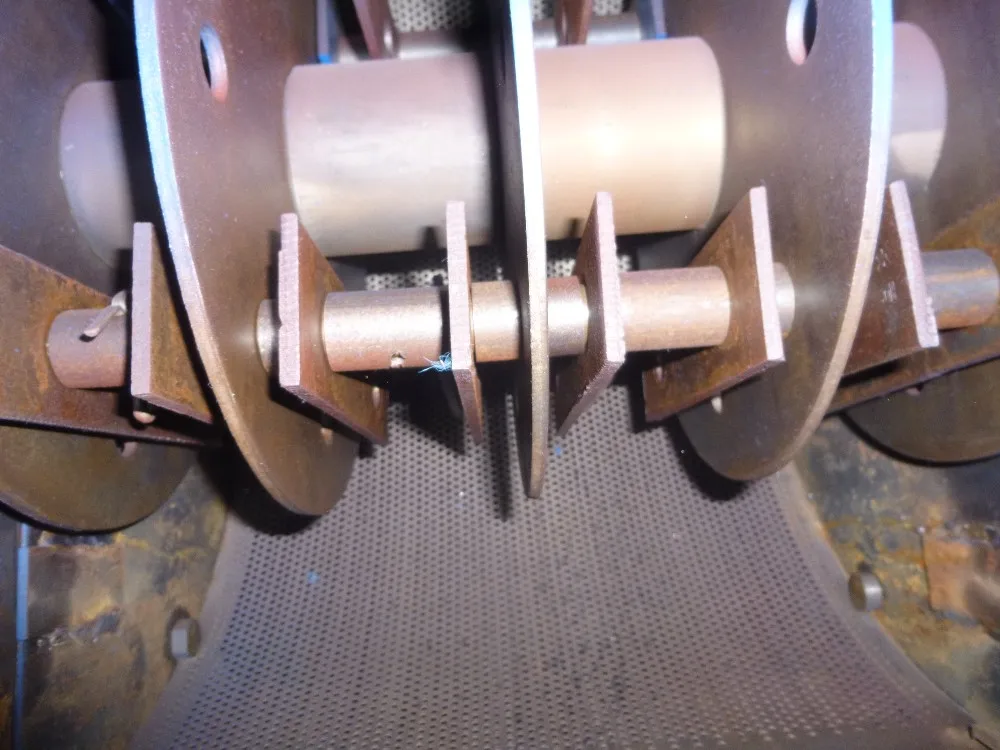

Name: Hammer Sheet
Brand: chengda
Original: China, Shandong
The hammer sheet is made by iron sheet. If we use it in a right way, we can use it more than 1000 hours.


Other Diesel Engine Powered Hammer Mills--- CF500A, CF198A, CF420A

Kinds of Raw Materials

Final Products You Can See

How to choose a good quality wood hammer mill?

Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.


Certifications
Packing & Delivery
Packaging
Size
90*58*102cm
Weight
120/140kg


Packing & Delivery
Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you.
Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)
Our Company

Laizhou Chengda Machinery Co., Ltd

Our company was founded in 1992, which is a high tech that enterprise integrates new product design, development, manufecturing and international trade business.Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Please free free to contact us if you have any inquiries and we will try our best to meet your demands.


FAQ

What kind of raw material is suitable for the Small Pellet Press Machine ?
A: All kinds of biomass waste, such as sawdust, wood branch, straw, coconut shell, corn, straw, grain,soybean and etc.

Any requirements on materials?
A: Ideal size of the raw material should be 1-5mm, ideal moisture of the powder should be 10%-20%

What kind capacity do you have?
A: 60-120kg/h, 200-300kg/h, 200-500kg/h, 800-1100kg/h and etc.

Can I visit your factory, where is your factory located?
A: Yes, sure, welcome to visit our factory at any time, we are in Laizhou city. Shandong province,China

About the installation, can you help us to install them?
A: Yes, sure, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators,

Exhibition
Our Service

1. 1 year guaranteed time with life-time service.
2. Free training, Guidance Installation and Debugging.If needed, engineers can be sent to your factory for installation and commissioning, training.
3. English manual and video for installation & operation.
4. Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours.


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

contact information

Skype:chen.cealian
Whatsapp:+8618660068873
Facebook: cealian chen
