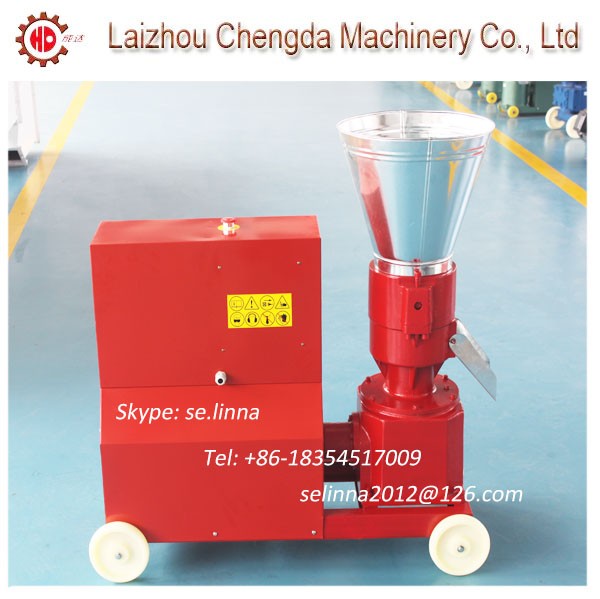

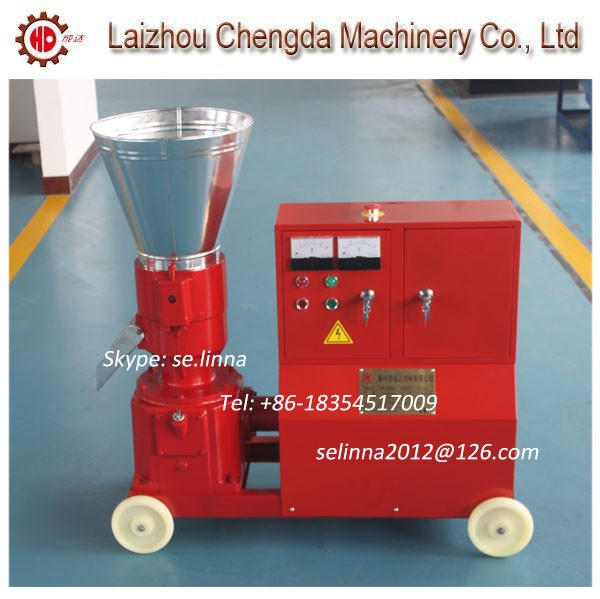

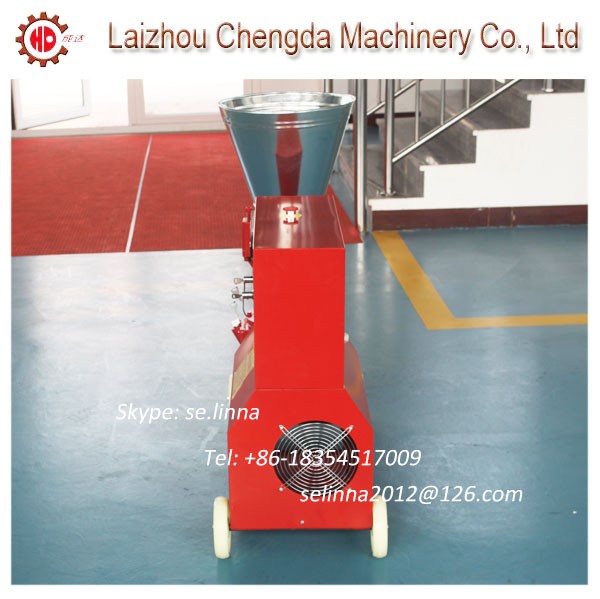

Hot sell KL200C 7.5KW mobile pellet machine for sale

FOB Reference Price:Get Latest Price
US $800-1,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New, new
Place of Origin:
Shandong, China (Mainland)
Brand Name:
chengda
Model Number:
KL200C
Voltage:
380V
Power(W):
7.5kw
Dimension(L*W*H):
100*46*90cm
Weight:
200kg
Certification:
CE ISO
Warranty:
1 Year, 1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Pellet diameter:
2.5-10mm
Color:
Blue, green or as your request
State:
Granular
Material:
Alloy steel
Main parts material:
alloy steel
Die diameter:
200mm
Raw material:
Biomass
Application:
Make Biomass Pellets
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Plywood box
Port
Qingdao, China
Lead Time :
Normally 7-15 days after received your payment.

 mobile pellet machine




1. Adwangtages:

   It can make the fullest use of natural resources, have good rigidity, perfect

smoothness, long shelf life and standard degree of moistness. The fodder will be

nearly cooked during the processing which can greatly increase the proportion

of take-in nutrition. And reduce the zymolysis time of fertilizers.



2. Applied Range:

    The machine can be used for heat daily or mixed fodder by corn, beans, straw, grass meal, paper, bamboo, sawdust etc.



3. Main Market:

 North America

South America

Asia

Africa

Oceania

 Western Europe

 Eastern Europe



4. Specification:



Model
Power
Voltage V/50Hz
Die Diameter
Die Hole Specification
Feed Capacity
Saw Dust Capacity
KL120C
3kw
380v
120mm
2.5-10mm
60-100kg/h
40-60kg/h
KL150C
4kw
380v
150mm
2.5-10mm
90-120kg/h
50-90kg/h
KL200C
7.5kw
380v
200mm
2.5-10mm
200-300kg/h
110-140kg/h
KL230C
11kw
380v
230mm
2.5-10mm
300-400kg/h
150-190kg/h
KL260C
15kw
380v
260mm
2.5-10mm
400-600kg/h
220-280kg/h
KL300C
22kw
380v
300mm
2.5-10mm
600-800kg/h
300-360kg/h
KL360C
22kw
380v
360mm
2.5-10mm
700-900kg/h
300-380kg/h
KL400C
30kw
380v
400mm
2.5-10mm
900-1200kg/h
400-550kg/h

5. Function:

    The KL serial machine can be powered by both diesel engine and E-motor. We adopt the new design of direct connection of motor shaft and he main shaft that

overcome the loose defect of belt connecting as long time using.


    When the fodder is added in, the template, pressing roller and fodder will be heated

to 60-80 digree by the friction among them. After being pressed through the template, the fodder will be thrown from the machine in a state of granular.



You can choose the size of the granules by using diffrent template with different size of holes in it.


    A diesel eingine is another choice to drive the machine, together with the clutch and

accelerating-decelerating device to change its speed. It is still for the belt to drive

the main shaft. The machine can run smoothly and with few noises.



feed pellet machine.jpg7.5kw pellet machine.jpgflat die pellet machine.jpg
