Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Chengda
  • Model Number: HKL45-90
  • Voltage: 380V
  • Power(W): 90kw
  • Dimension(L*W*H): 278*132*210cm
  • Weight: 3600kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Overseas service center available
  • color: as request

Packaging & Delivery

Packaging Details plywood box
Delivery Time within 10-15 working days after receive your down payment

Specifications

CE certification
vertical ring die
double layer die ,high output and energy saving

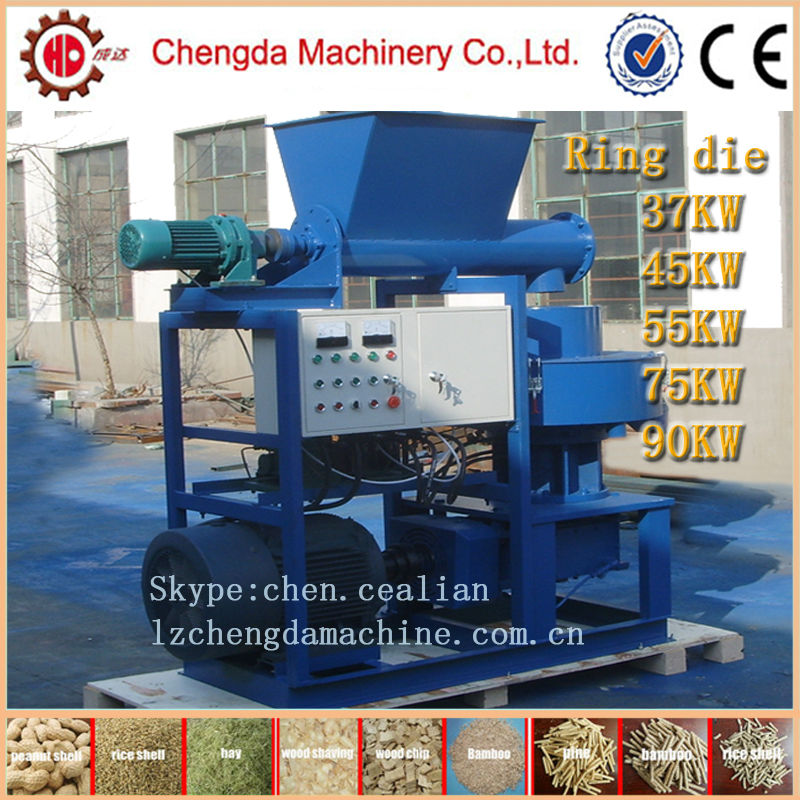

Introductions of Vertical Ring Die Pellet Mill

1).The new product HKL series “double vertical ring-die pellet mill”, Research, design, produced by ourselves, With alone shape, more reasonable structure and stability, Professional for Wood, rice husk, peanut shell, bamboo and Palm fiber etc.



2).Gearbox: continue the New generation gearbox, Driving with high-precision gears, Automatic lubricant pump system keep the gearbox working stability and warranty period.



3).Vertical motor: the most characteristic is mounting hole with output shaft as the center, equidistant distribution around, More powerful and stability of machine working.



4).Blower system: located in one side of work bin, free control the working time, the main function is dedusting and discharge steam.

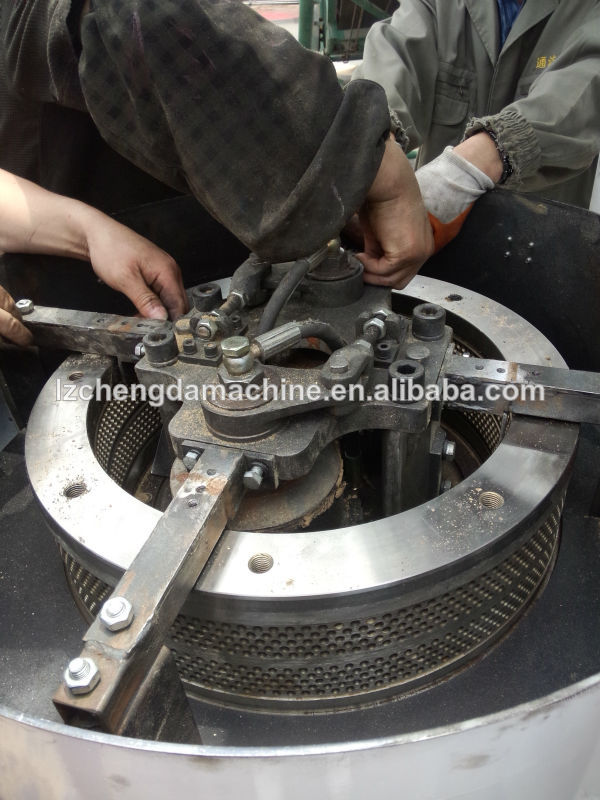

5).Working parts: Ring-die and rollers materials are alloy steel, heat treatment made by ourselves, hardness more than 52,In this hardness can assure the pelleting quality and warranty time, working manner is from inside to outside press, centrifugal force and extrusion pressure together, produced more capacity, at the same time assure hardness and density, the special design is 4 to 8 rollers working, Increase press rate then increase capacity, Ring-die is “vertical double-deck” structure, it can use one mould with same hole size for working life increased, moreover it can use one mould with different hole size for saving the money for another size mould.

ModelPowerDie DiameterDie HoleWood outputWeightPacking Size
HKL40-3737kw400mm4-12mm500-600kg/h1500/1600164*65*174
HKL40-4545kw400mm4-12mm600-700kg/h1900/2000185*74*174
HKL45-5555kw450mm4-12mm700-900kg/h3000/3100242*121*195
HKL45-7575kw450mm4-12mm1000-1200kg/h3200/3300252*121*200
HKL45-9090kw450mm4-12mm1300-1400kg/h3500/3600278*132*210

Which one to choose? Flat die or Ring die?

Flat Die Wood Pellet Mill
Compared with ring die wood pellet mills, the flat die pellet mills are applied to small and medium sized production which requires lower hourly output and the materials with large adhesive force.
Also, flat die pellet mill has its own advantages and disadvantages. On the whole, flat die pellet mill is of low energy consumption, greater mobility, so it is suitable for small scale family workshop, but not for large-scale operation in enterprises and factories. Low output, low pressure, bad final pellet forming shape are disadvantages of
flat die wood pellet mill. What’s more, the removing of spare part is indeed a troublesome thing.

Ring Die Wood Pellet Mill
Ring die pellet mills are of vertical structure and they combine with the flat die pellet mills’ vertical feeding method. The original circle structure of ring die pellet press is specially designed for those wood materials like gum wood, palm which are hard to press. Because the proportion of the materials is light,so vertical feeding method is selected. In addition, due to the nice stability of circle structure ring die pellet mills, thus the design adopts combination of ring die and flat die.
Ring die pellet mill has both advantages and disadvantages. There are three main advantages: 1.Large production, nice pellet forming shape and high density( 1-1.3%). 2. No additives are needed while pelletizing. 3. The roller and ring die are of balanced wear. The main disadvantage is the relatively high power consumption.



In a word, ring die wood pellet mills advantages are the flat die wood pellet mills disadvantages, and vice versa. You must consider all the factors that will limit your production carefully. I hope this article will be of a little value for you. If you have interests, welcome to contact with us. We are professional and reliable enough.

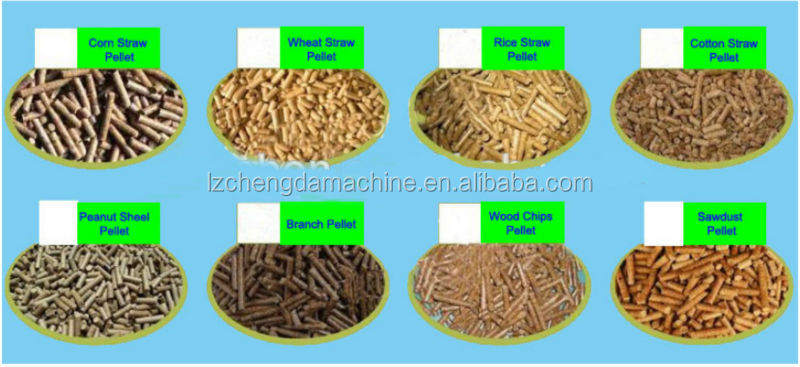

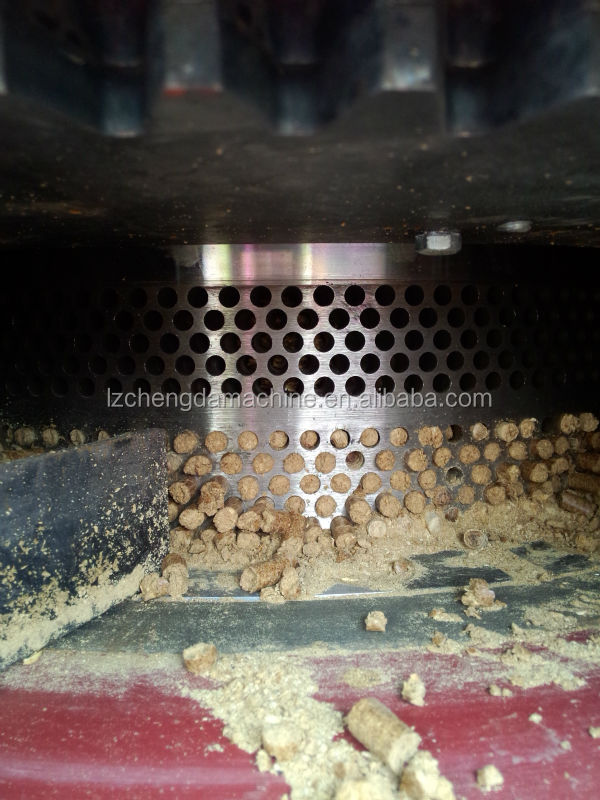

  Different Pellet Size Showing of Vertical Ring Die Pellet Mill

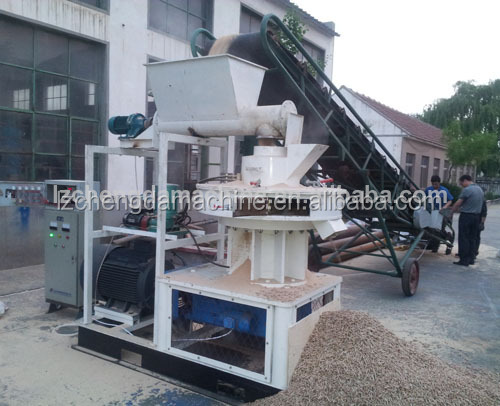

Different Direction Display of Vertical Ring Die Pellet Mill

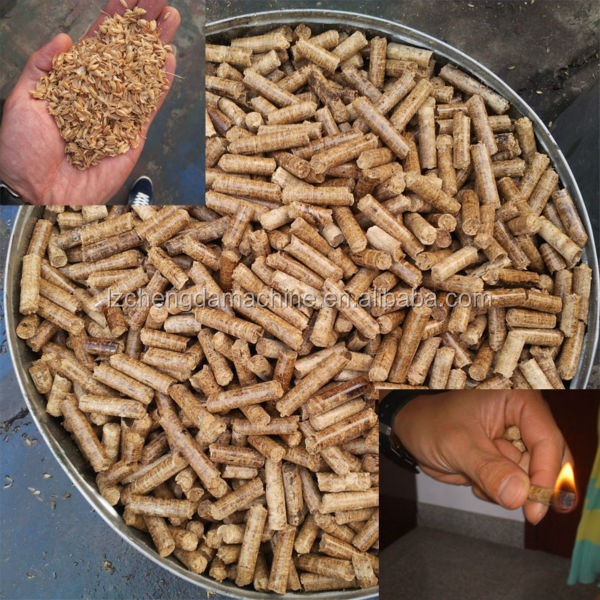

                 Rice husk pellets

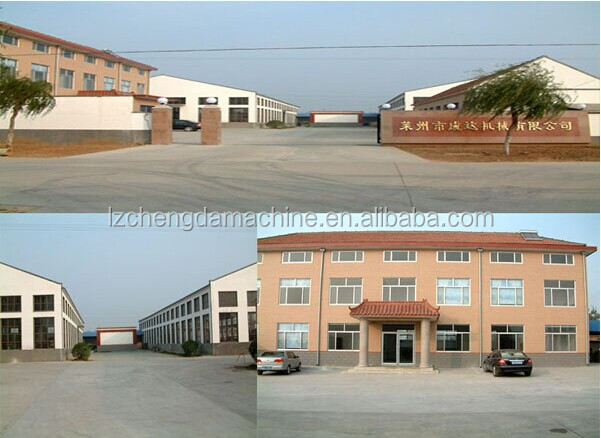

            Our factory and certification

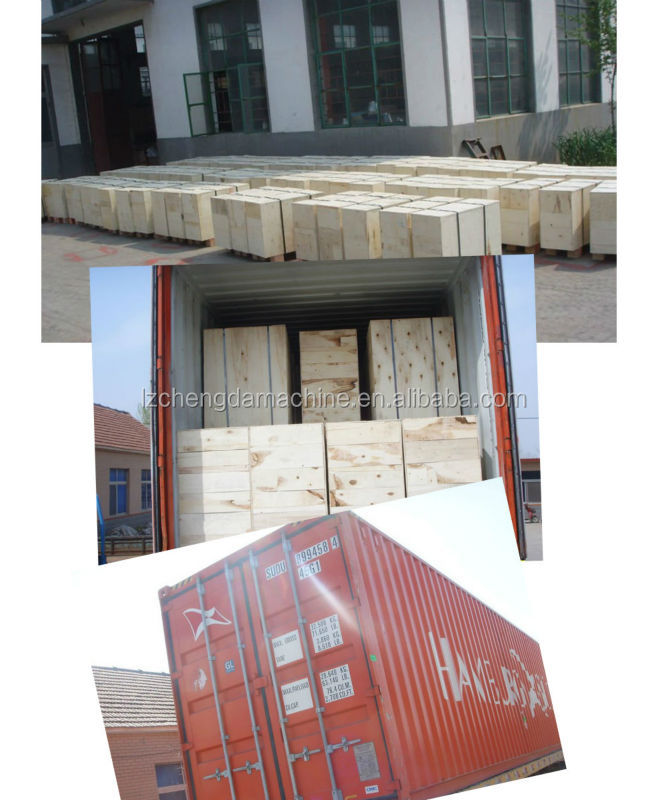

               Packaging and shipping



                       After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. Amisy can offer you 12 months warranty for main parts to protect your interests and save your money.

                    Contact information

TradeManager:cn1511227029

Skype: chen.cealian

TEL:15805353812

QQ:383342040
