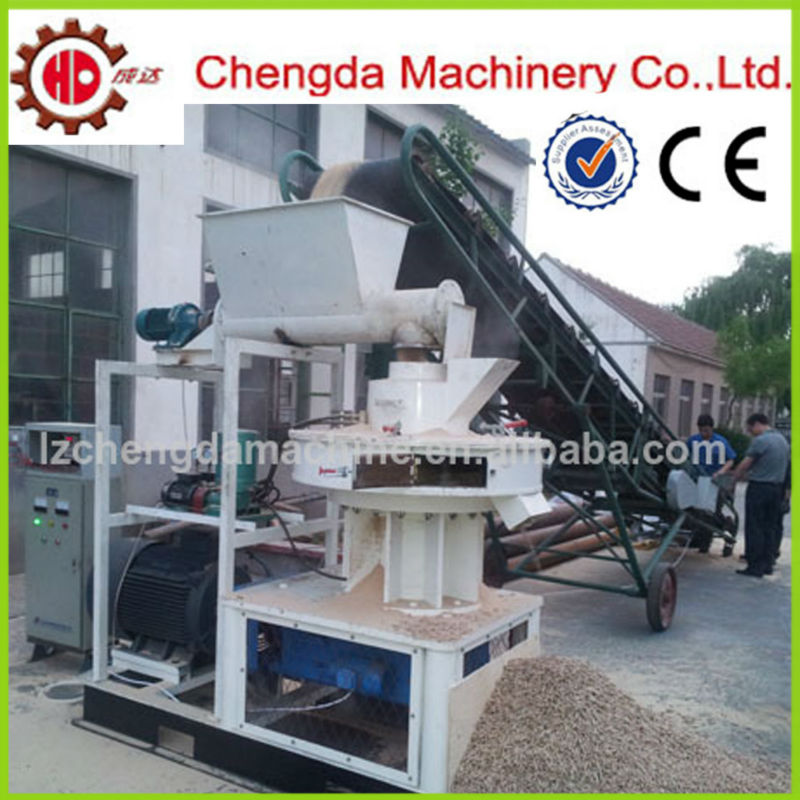

Chengda New Design factory supply 37kw vertical ring die hard wood sawdust pellet machine with CE certification

FOB Reference Price:Get Latest Price
US $7,900-14,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Chengda
Model Number:
HKL40-37
Voltage:
380V
Power(W):
37kw
Dimension(L*W*H):
164*65*174cm
Weight:
1600kg
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Overseas service center available
color:
as request
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood box
Port
Qingdao,China
Lead Time :
within 10-15 working days after receive your down payment

Specifications

CE certification
vertical ring die
double layer die ,high output and energy saving



Which one to choose?

Flat die or Ring die?


Data of vertical ring die pellet mill

ModelPowerDie DiameterDie HoleWood outputWeightPacking Size
HKL40-3737kw400mm4-12mm500-600kg/h1500/1600164*65*174
HKL40-4545kw400mm4-12mm600-700kg/h1900/2000185*74*174
HKL45-5555kw450mm4-12mm700-900kg/h3000/3100242*121*195
HKL45-7575kw450mm4-12mm1000-1200kg/h3200/3300252*121*200
HKL45-9090kw450mm4-12mm1300-1400kg/h3500/3600278*132*210

 HTB1_loYFFXXXXcWXXXXq6xXFXXXT.jpgHTB1aeE1FFXXXXaBaXXXq6xXFXXXf.jpgHTB19G_1FFXXXXcCaXXXq6xXFXXXW.jpg

Flat Die Wood Pellet Mill
-34.jpgCompared with ring die wood pellet mills, the flat die pellet mills are applied to small and medium sized production which requires lower hourly output and the materials with large adhesive force.
Also, flat die pellet mill has its own advantages and disadvantages. On the whole, flat die pellet mill is of low energy consumption, greater mobility, so it is suitable for small scale family workshop, but not for large-scale operation in enterprises and factories. Low output, low pressure, bad final pellet forming shape are disadvantages of flat die wood pellet mill. What’s more, the removing of spare part is indeed a troublesome thing.

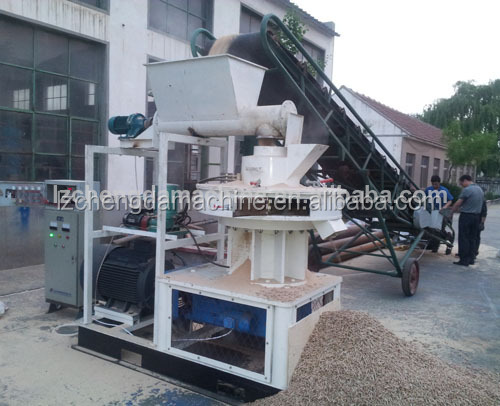

Ring Die Wood Pellet Mill
vertical ring.jpgRing die pellet mills are of vertical structure and they combine with the flat die pellet mills’ vertical feeding method. The original circle structure of ring die pellet press is specially designed for those wood materials like gum wood, palm which are hard to press. Because the proportion of the materials is light,so vertical feeding method is selected. In addition, due to the nice stability of circle structure ring die pellet mills, thus the design adopts combination of ring die and flat die.
Ring die pellet mill has both advantages and disadvantages. There are three main advantages: 1.Large production, nice pellet forming shape and high density( 1-1.3%). 2. No additives are needed while pelletizing. 3. The roller and ring die are of balanced wear. The main disadvantage is the relatively high power consumption.

In a word, ring die wood pellet mills advantages are the flat die wood pellet mills disadvantages, and vice versa. You must consider all the factors that will limit your production carefully. I hope this article will be of a little value for you. If you have interests, welcome to contact with us. We are professional and reliable enough.


vertical ring die 3.jpg


Do I have to go to your factory for atutorial of learing how to operate a pellet mill?

It's not necessary. As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth.
