Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: chengda machine
  • Model Number: MKL225P
  • Voltage: not need
  • Power(W): 8hp to 55hp
  • Dimension(L*W*H): 87*85*116cm
  • Weight: 420kgs
  • Certification: CE
  • Warranty: 12 monthes
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color green, blue, or as your request: Material alloy steel
  • State granular: certification:CE
  • capacity: 100-600kg/h
  • pellet length: adjustable
  • Raw material: below 6mm powder
  • moisture: 8%-15%

Packaging & Delivery

Packaging Details Plywood box
Delivery Time Shipped in 2 days after payment



Product Description
1.Flat Die Pellet Machines



Our flat die pellet machines can be devided into two series, KL series and MKL series pellet machines. Our KL series pellet machins can both make feed pellets and wood pellets, but the capacity of wood pellets is lower than that of making feed pellets. Our MKL series pellet machines has the special design for making wood sawdust pellets.
Our pellet machines can be driven by electrical motor, diesel engine, gasoline engine and tractor for your choices. All of our KL-P series pellet mills are driven by the tractor.



2.Description of  roller moving wood pellet machine with 8hp to 150hp tractor

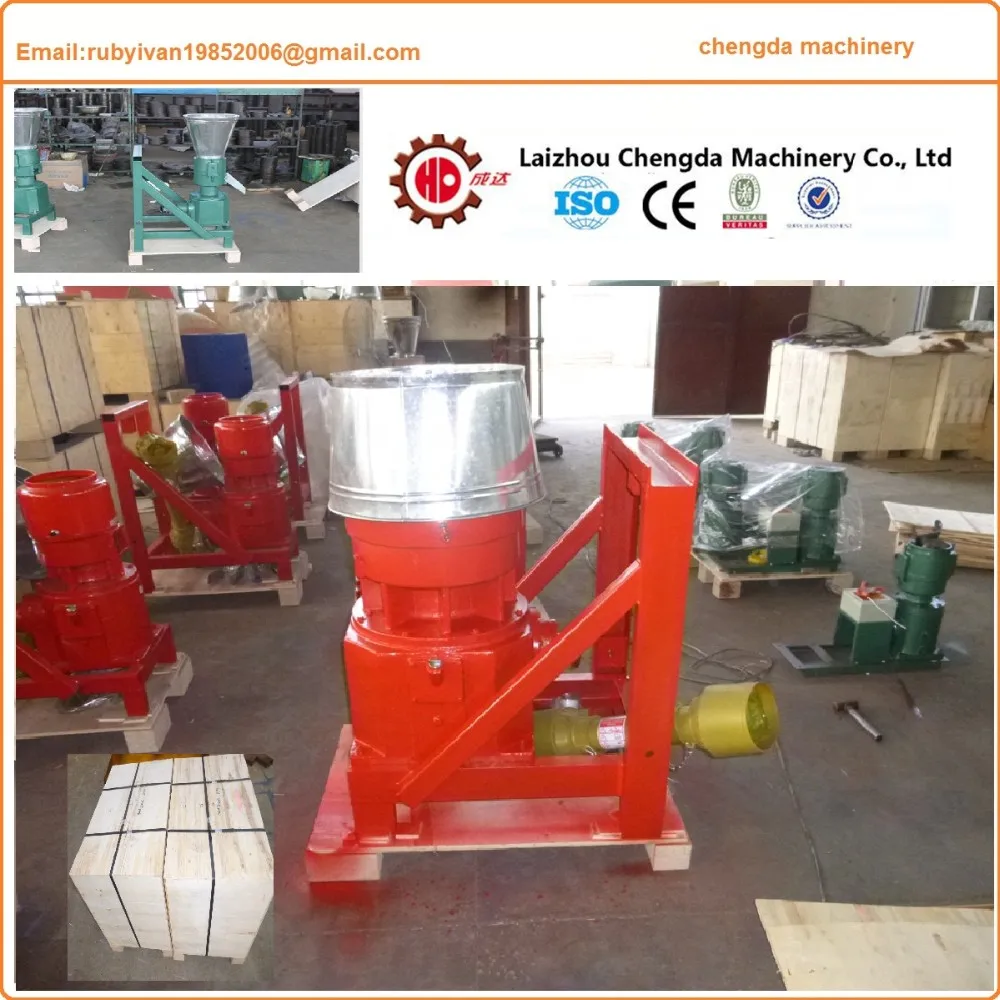

 PTO Tractor Driven pellet machine--MKL225P roller moving type



 Model:MKL225P
2. Output: 220-280kg/h.
3. Power:   Driven by tractor.
4. The size of the final pellets: 2.5-10 mm, if you make animal feed pellets, 2.5-4 mm is better. If you make the wood pellets, 6 and 8 mm is better.
5. Pellet length :which can be adjusted  by adjusting knife within range of 1-5 cm.
6. We sell the pellet machine pto without the tractor.
7. Weight(without of thr tractor): 230kg









3. Different series of  Roller moving wood pellet machine assort 8-150hp tractor

Version A pellet mills are driven by Diesel engine or gasoline engine.
Version B mills are driven by Emotor, without extra cabinet and cover on the motor.
Version C mills are improved B-models with extra cabinet and closed house on the motor. CE elec-parts & insulated plate.

Version P mills are the tractor driven . you can connect with your tractor directly.







The Specific Parameters of MKL-P Series Pellet Mills

ModelPowerDie DiameterDie Hole SpecificationFeed CapacitySaw Dust Capacity
MKL225P18-28HP230mm2.5-10mm300-400kg/h150-190kg/h
MKL229P28-45HP260mm2.5-10mm400-600kg/h220-280kg/h
MKL295P45-55HP300mm2.5-10mm600-800kg/h300-360kg/h
MKL335P50-150HP360mm2.5-10mm700-900kg/h300-380kg/h
MKL395P50-150HP400mm2.5-10mm900-1200kg/h400-550kg/h

Advantages of PTO Pellet Machines





1).Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption
2).Powder feed, grass meal doesn't need or with a little liquid, then can be making for granulation.So basic to the moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3).Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4).Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the digestion and absorption of nutrients.

4. The raw material of  Roller moving wood pellet machine assort 8-150hp tractor





5. The production of   Roller moving wood pellet machine assort 8-150hp tractor







6. The parameter of  Roller moving wood pellet machine assort 8-150hp tractor



Parameters of the output pellets
calorific value  >4500~4800 kcal/kg
density  >1.1~1.3t/m³
moisture  <=10%
combustion ratio  >=98%
heat efficiency  >=81%
ringelman emittance   <1
discharged dust consistence  <=80mg/m³
ash content  <=2%







7. How to order our s Roller moving wood pellet machine assort 8-150hp tractor



(1) You find the product you are interested in in Alibaba and send the price inquiry to us.



(2) I will send you a email about the information and the price list of the product.



(3) You can chose the suitable model you need.



   If you have any problems for our machine or if you have any requires for our machine, just feel free to let me know.



   I will reply you at once and follow your requires to produce the machine.



(4) I will make a proforma invoice for you the you can do the payment according to the proforma invoice.



(5) After we receive the payment, we will begin to produce the machine.





8. Certification of   Roller moving wood pellet machine assort 8-150hp tractor



9. More product to choose  Roller moving wood pellet machine assort 8-150hp tractor






10. Details of  Roller moving wood pellet machine assort 8-150hp tractor



 (1) The speed of our sawdust pellet machine wood pellet making machine price :



      The motor speed is fixed, all of the particles machine motor speed is 1400RPM.



      Our pellet machine's speed is 200-300RPM,  inside the machine with a relatively simple homemade gear.



(2) Fuel consumption of our sawdust pellet machine wood pellet making machine price



     Diesel engine pellet machine's fuel consumption: For 8Hp, it is 1.23L/H.For 15Hp, it is 2.31L/H.For 22Hp, it is 3.36L/H.



     For 35HP, it is 5.39L/H. 7.5HP gasoline guzzling about 1.2L / Hour.



(3) Wheel of our sawdust pellet machine wood pellet making machine price :



     Motor-driven particle machine not with wheels, diesel particulate gasoline powered machines with wheels.

(4) Transmission of our sawdust pellet machine wood pellet making machine price
     Motor is shaft drive. Diesel, 120 to 230 is a belt drive, 260 to 400 is a shaft drive.

(5) Package of our sawdust pellet machine wood pellet making machine price
     Packaging is plywood wood care, non-wood, fumigation.

(6) Spare parts and lubrication of our sawdust pellet machine wood pellet making machine price
     The machines' spare parts case takes a Grease gun, used to add lubricating oil pressure roller and spindle bearings, where oil useLithium-based lubricants: GB7324-94.

(7) Emergency stop switch of our sawdust pellet machine wood pellet making machine price
    If you need, we can add the emergency stop switch for you.

(8) Only KL360, KL400,M KL 335, MKL 395 is three pressure rollers. At the time of installation, the gap between the pressure roller and thedisc needs adjusted 0 ~ 0.5mm. (The thickness of a sheet of A4 paper is about 0.1mm) smaller the gap, the material will be sooner, butthe disc and the pressure roller loss is also faster.

(9) Star-delta starter of our sawdust pellet machine wood pellet making machine price
It is main used to protect the motor.

(10)pellet's length of our sawdust pellet machine wood pellet making machine price
The pellet isn't fixed, it is 2-5cm.But you can adjust the spout's screw to change the  position of the blade, it could also conteol the pellet's length.





3. Trade items of  Roller moving wood pellet machine assort 8-150hp tractor

MOQ1 set
Package
Wooden, metal frame box
Delivery TermFOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Payment TermT/T,L/C, Paypal,Western Union,Escrow
Supply Ability100 sets per month
PortQingdao
Warranty1 year



Why choose us?

 Advantages of us:

(1) We have produced the biomass machine for more than 25 years.

(2) Our clients are all over the world, main in European.

(3) We all have passed the CE, ISO, SGS.

(4) We have better service attitude than most of Chinese suppliers.

(5) We are Alibaba golden supplier.

at the most important, we are the manufacturer.



Welcome to our factory to visit.
