pellet machine connect with the pellet cooler

FOB Reference Price:Get Latest Price
US $1,000-1,277 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
1000 Unit/Units per Month
Port:
qingdao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
chengda machine
Model Number:
LJ30
Type:
pellet cooler
Voltage:
380v
Power(W):
2.2kw
Dimension(L*W*H):
164*74*112
Weight:
180 kg
Certification:
CE
Warranty:
12 month
After-sales Service Provided:
Engineers available to service machinery overseas
colour:
green blue red
funtion:
make the hot pellet into cool
final pellet temputer from the cooler:
room temputer
output:
500-700kg/h
delivery:
10 working days after confirming the order
Packaging & Delivery
Packaging Details
Plywood box
Delivery Time
7-15 working days when received your payment





       Drawing of Combined Cooler and Sieve







pellet cooler
1. decrease the temperature of wood pellet to room termperature
2. Easy to operate

3. High quality
3. High efficiency

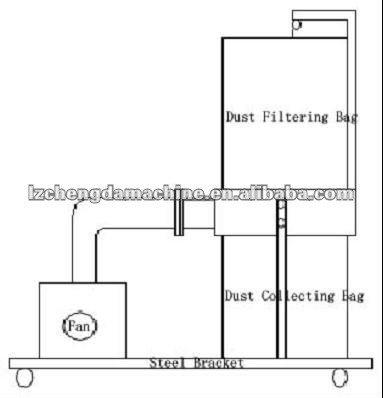

Bag Dust Filter



Pellet can be cooled fully and equally.

Operation stable and the material discharging easy and smooth.

 Combine Cooler and Sieve is base on the drum of Rotary Sieve which is made up of Drum Sieve and Frame.

There is one certain degree between the Rotary Drum Sieve and ground. The outside of the Sieve is covered by closed steel to reduce the noisy pollution. On the adjustable speed system, the drum sieve is rotating on certain speed; the pellet is separated and cooled from top to bottom on the rotating of Drum Sieve. The fine powder is discharged from the front of Drum Sieve, nd the good pellet is outlet from the back of Drum Sieve. During the cooling and sieving process, the rotating is evenly, low impulsion and vibrating, and stable. The installation of Combined Cooler and Sieve is easy which can be directly put on he ground, floor board or under the storage. This machine is easy to closely collect dust and maintain.

technical data

Item No.LQJ30LQJ50
MotorY100L1-4Y100L1-4
Motor Power2.2Kw            2.2Kw
Draught FanY4-72-2.2Y4-72-2.2
Tub-bending for Dust Removal¢120¢120
Output200~350 kg/hour500~700 kg/hour
Net Weight150kg220kg
Gross Weight180kg260kg
Packing Size155*68*112 (cm)220*68*112 (cm)













 We also have the pellet machine for your choose



CE certification







Need more information , feel free to contact me.
